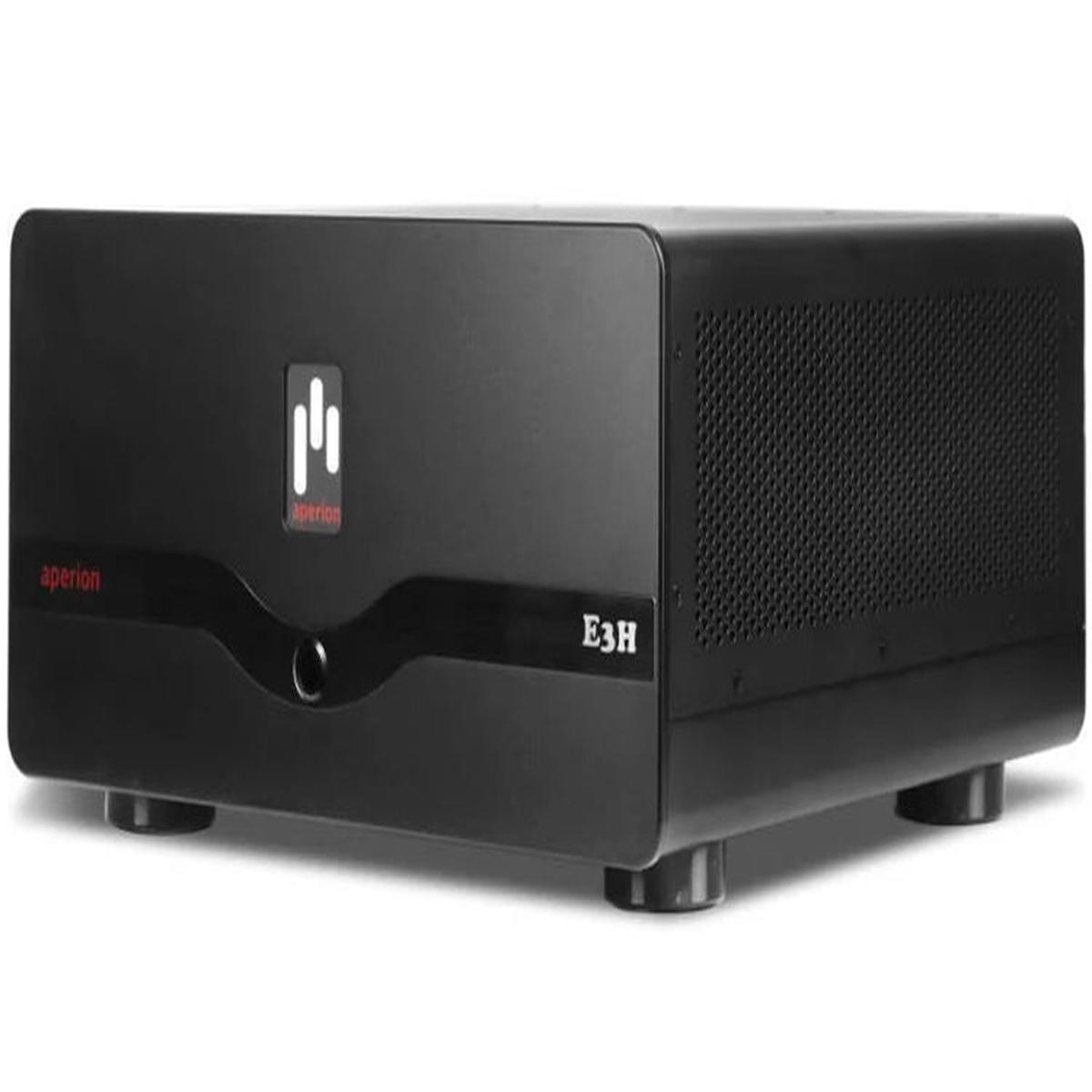

Energy Pro High Power 3-Ch High-Fidelity Power Amplifier

The Aperion Energy E3H is a high-performance three-channel amplifier designed for audiophiles and home theater enthusiasts seeking uncompromising sound quality. Delivering 600 watts per channel at 8 ohms, it provides clean, dynamic, and powerful output for your left, center, and right channels. With fully discrete circuitry and balanced XLR inputs, the E3H seamlessly integrates into premium audio setups, ensuring accurate and detailed sound reproduction across the full frequency range.

Features:

• Key Features
• Power Output:
  – 700W per channel at 8 (1 channel driven)
  – 1000W per channel at 4 (1 channel driven)
  – 600W per channel at 8 (all channels driven)
  – 900W per channel at 4 (all channels driven)
• Connectivity:
  – Balanced XLR and unbalanced RCA inputs
  – Input selection switch
  – Gold-plated, 5-way binding post outputs
  – 12V trigger input for seamless integration
• Performance:
  – Signal-to-Noise Ratio: 96dB (RCA), 108dB (XLR)
  – Total Harmonic Distortion (THD+N): 0.015% at full power (1 kHz)
  – Frequency Response: 10 Hz 32 kHz (1dB)
• Design & Build:
  – Class AB amplification with fully discrete circuitry
  – High-performance toroidal transformer
  – Soft Turn-on protection to prevent power surges
  – Efficient passive cooling with oversized aluminum heat sinks
• Power Consumption:
  – Maximum: 4140W at 4
  – Standby: <0.5W
• Physical Specifications:
  – Dimensions: 9.1″ (H) x 17.2″ (W) x 17″ (D)
  – Dimensions: 230mm x 437mm x 432mm
  – Weight: 81.6 lbs / 37 kg

Warranty:

• One (1) year warranty

• Type: 3 Channel Power Amplifier
• Power Output (RMS) @ 1 Channel Driven: 700W (8, 1 Channel), 1000W (4, 1 Channel)
• Power Output (RMS) @ All Channels Driven: 600W (8, All Channels), 900W (4, All Channels)
• Connections: RCA Inputs and Balanced XLR Inputs
• SNR: 96dB (RCA), 108dB (XLR)
• Distortion (THD+N): 0.015% (Full Power at 1 kHz)
• Frequency Response (+/-1dB): 10 Hz – 32 KHz
• Power Supply: 110 – 220 VAC (Automatically)
• Transformer: High-performance toroidal transformer
• Max Power Consumption: 4140W @ 4 ohm
• Standby Consumption: 0.5W
• Input Sensitivity: 1.2V for Full Rated Power @ 8 ohms
• Load Impedance: 4 – 16 ohms
• Input Impedance: Nominally 50k
• Remote Trigger Voltage: 5 – 24V
• Product Weight: 81.6 lbs / 37 kg
• Product Dimensions:
  H 9.1″ x W 17.2″ x D 17″
  H 230mm x W 437mm x D 432mm
• Shipping Weight: 91.5 lbs / 41.5 kg
• Shipping Dimensions:
  L 24″ x W 22″ x D 14″
  L 600mm x W 560mm x H 360mm

* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
