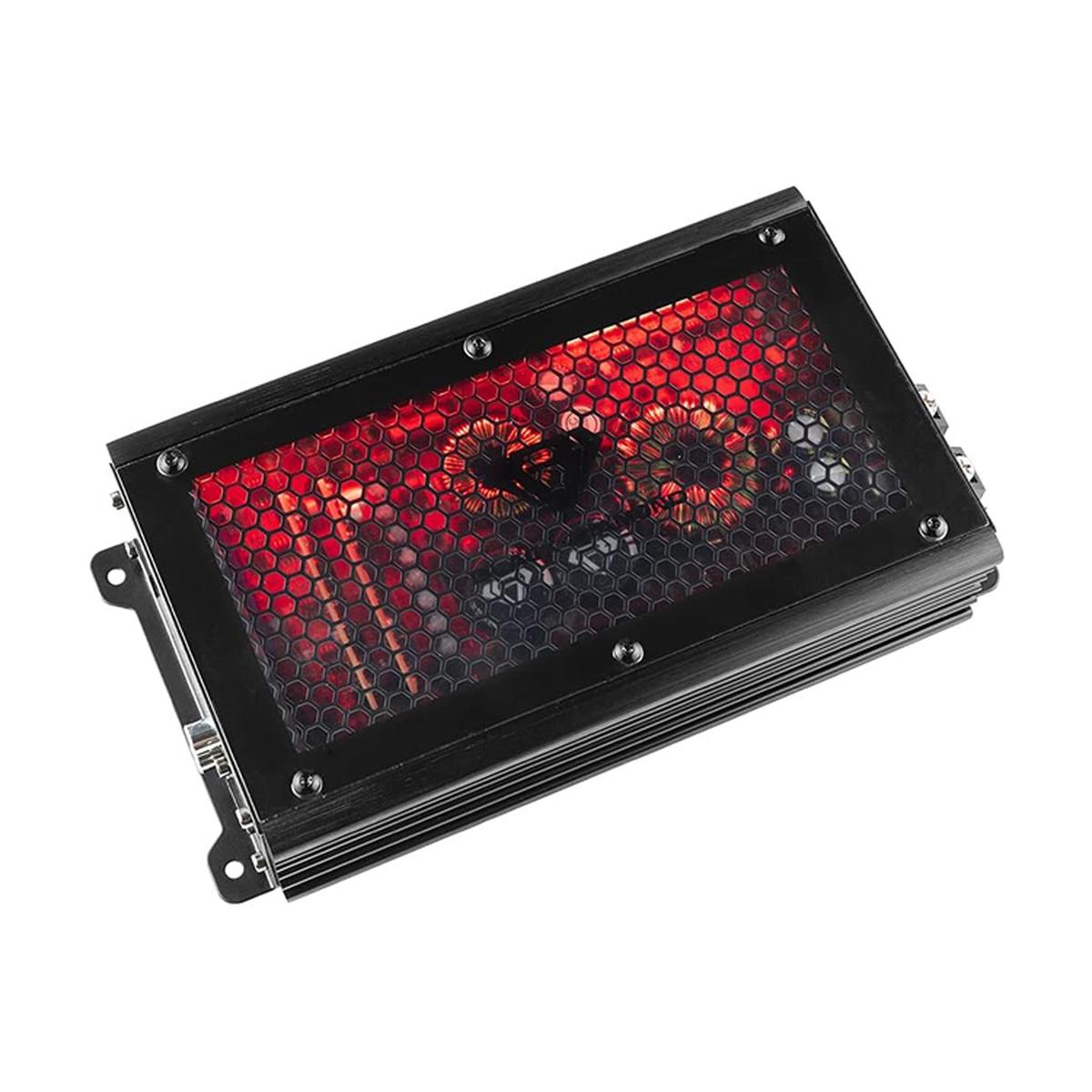

Black Diamond Class D 1-Channel Monoblock Amplifier 1800 Watts DIA-K1

Key Features:

• 1800W
• Monoblock Class-D Subwoofer Amplifier 1ohm stable
• Nickel-plated RCA input connectors
• Adjustable Gain, Low-Pass, Bass boost and Subsonic Filter
• Amplifier Class: Digital (D)
• Led Indicator: Power/Protection
• Power Input Terminal Size: 4ga
• Fuse Size: 3x40A
• Remote Level Control: YES
• Thermal Protection: YES
• Over-Load Protection: NO
• DC Output Protection: YES
• Short Circuit Output Protection: YES
• Voltage Input Protection: YES

Specifications:

• POWER
  • Total Watts (Peak): 1800W
  • RMS Power @ 4 ohm: 250W x 1
  • RMS Power @ 2 ohm: 400W x 1
  • RMS Power @ 1 ohm: 600W x 1
• AUDIO
  • Frequency Response: 10-500Hz
  • Signal to Noise Ratio: >93dB
  • Total Harmonic Distortion (THD): 0.12%
  • Low Level Input Range: 0.25-6V
  • High Level Input: Yes
  • Selectable X-Over: Fixed LPF
  • X-Over Filter Range: 35-250Hz
  • Bass Boost Range: 0-12dB
  • Bass Boost Frequency: Fixed @ 45Hz
  • Infrasonic Filter: 10-50Hz
