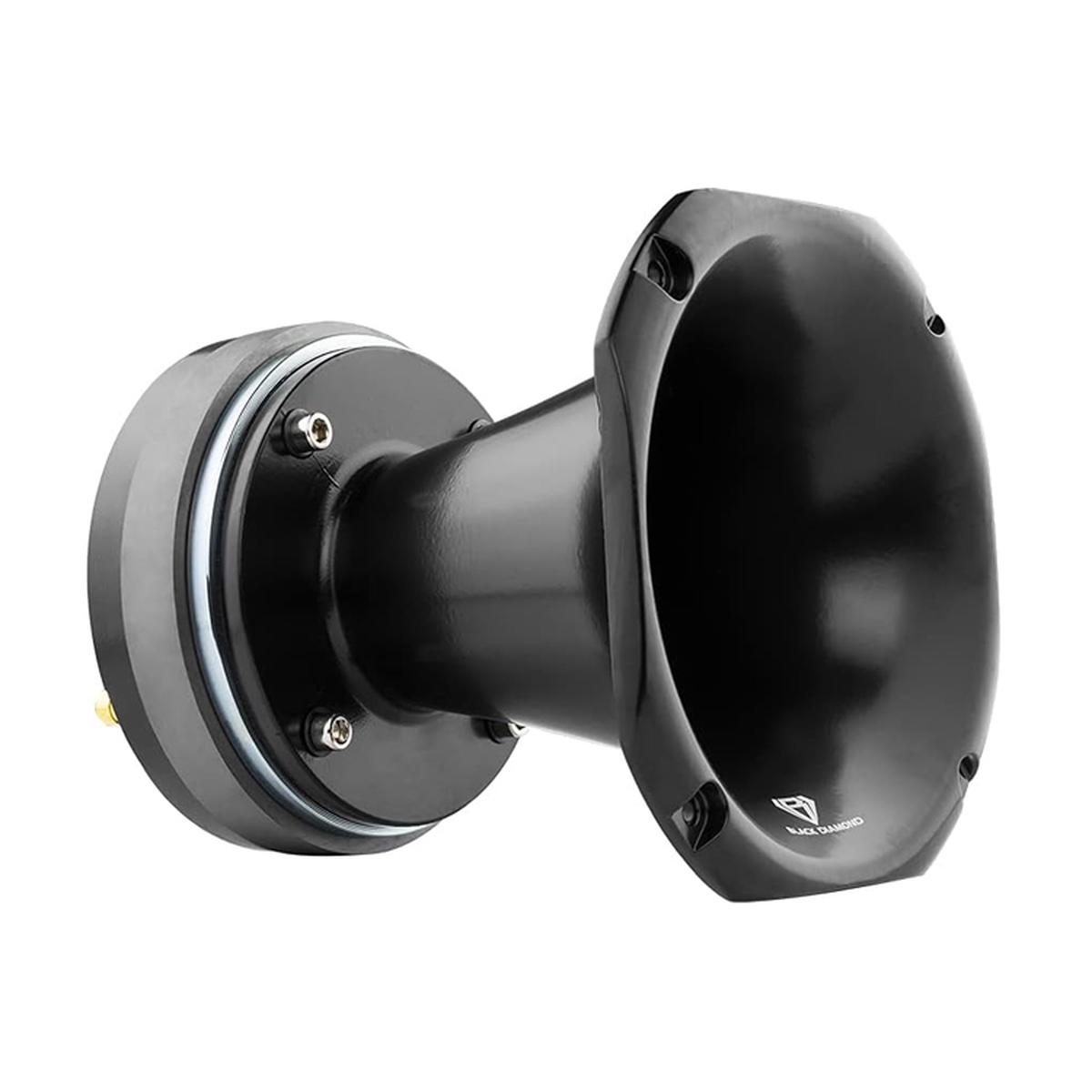

The Black Diamond DIA-KD2 2″ Compression Driver with titanium voice coil delivers up to 640W peak power and 106dB sensitivity, ideal for high-performance audio setups. With an 8-ohm impedance and 630Hz-20KHz frequency range, it offers clear sound. Durable aluminum horn for wide sound coverage.

Key Features:

• AES Power Handling: 160 Watts
• Program Power Handling: 320 Watts
• Peak Power Handling: 640 Watts
• Nominal Impedance:8ohm
• Sensitivity (1w/1m) With Horn: 106dB
• Frequency Response: 630Hz-20KHz
• Recommended Hi Pass Crossover: 1KHz

Specifications:

• MOTOR
  • Voice Coil Diameter: 2″
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Titanium
  • Magnet Material: Ferrite
  • Magnet Weight: 34Oz
  • Magnet Material: Ceramic
• Horn Specifications
  • Nominal Diameter: 6.5″
  • Throat Diameter: 2″
  • Sound Coverage: 100 Circular
  • Body Material: Aluminum
  • Color/Finish: Black
• Measurements
  • Overall Diameter: 6.18″ x 6.85″ / 157 x 174mm
  • Overall Depth.: 7.48″ / 190mm
  • Mounting Depth: 7″ / 180mm
  • Mounting Hole Diameter: 5.43″ / 138mm
  • Bolt Pattern (Horn): 6.29″ / 160mm – 0.22″ / 5.5mm
