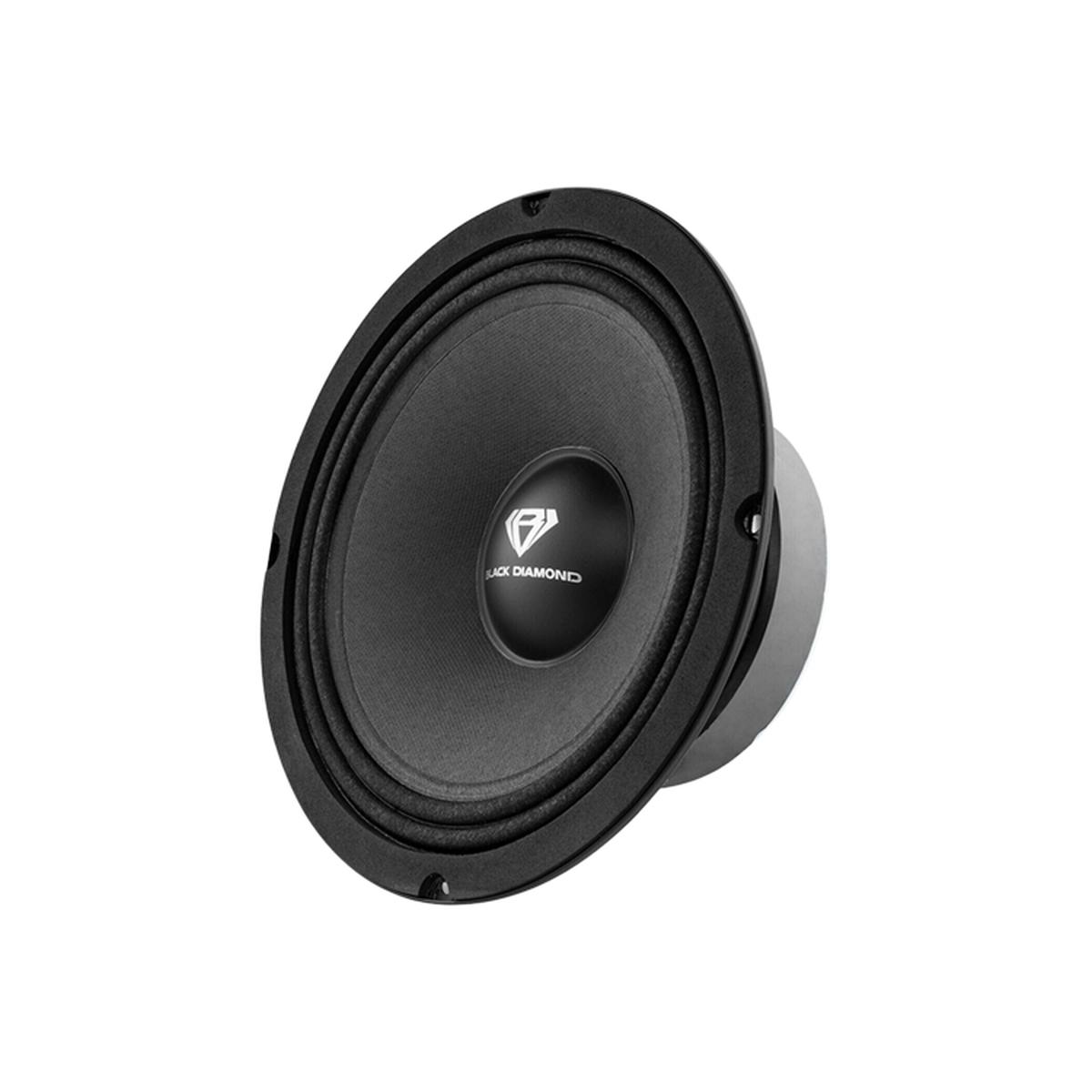

Name: Black Diamond DIA-M8 8" Mid-Range 8-Ohm Car Speaker (Single)
SKU: NGO6059471030
Availability: InStock

Black Diamond DIA-M8 8″ Mid-Range 8-Ohm Car Speaker (Single)

Read reviews (0)

$61 $30.5

Save 50%

Black Diamond 8" Mid-range LoudSpeaker With Bullet 8-Ohm 500 Watts DIA-M8Key Features:Nominal Diameter: 8"RMS Power Handling: 250WMAX Power Handling: 500WNominal Impedance: 8 OhmSensitivity: (1w/1m): 96 dBFrequency Response: 115Hz-6.3KHzRecommended Hi Pass…

100% Secure Payment & Data Safety
Global Delivery & Fast Dispatch
30 Days Free Return & Exchange

Black Diamond 8″ Mid-range LoudSpeaker With Bullet 8-Ohm 500 Watts DIA-M8

Key Features:

Nominal Diameter: 8″
RMS Power Handling: 250W
MAX Power Handling: 500W
Nominal Impedance: 8 Ohm
Sensitivity: (1w/1m): 96 dB
Frequency Response: 115Hz-6.3KHz
Recommended Hi Pass Crossover: 120 Hz

Motor Specifications
- Voice Coil Diameter: 1.5 / 38.6 mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Non-Pressed Paper
- Surround Material: Cloth
- Basket Material: Steel
- Magnet Material: Ferrite
- Magnet Weight: 30 oz
- Displacement Volume: .66L
Thiele & Small Parameters
- Equivalent Volume: 2.185L
- Excursion: 9.3mm
- Free Air Resonance: 100Hz
- Mechanical Factor: 13.041
- Electrical Factor: 0.684
- Total Factor: 0.65
- CD Resistance: 5.2 Ohms
Measurements
- Overall Diameter: 8.22
- Overall Depth: 3.38
- Front Mount Baffle Cutout: 7.16
- Mounting Depth: 3.11
- Motor Diameter: 4.72
