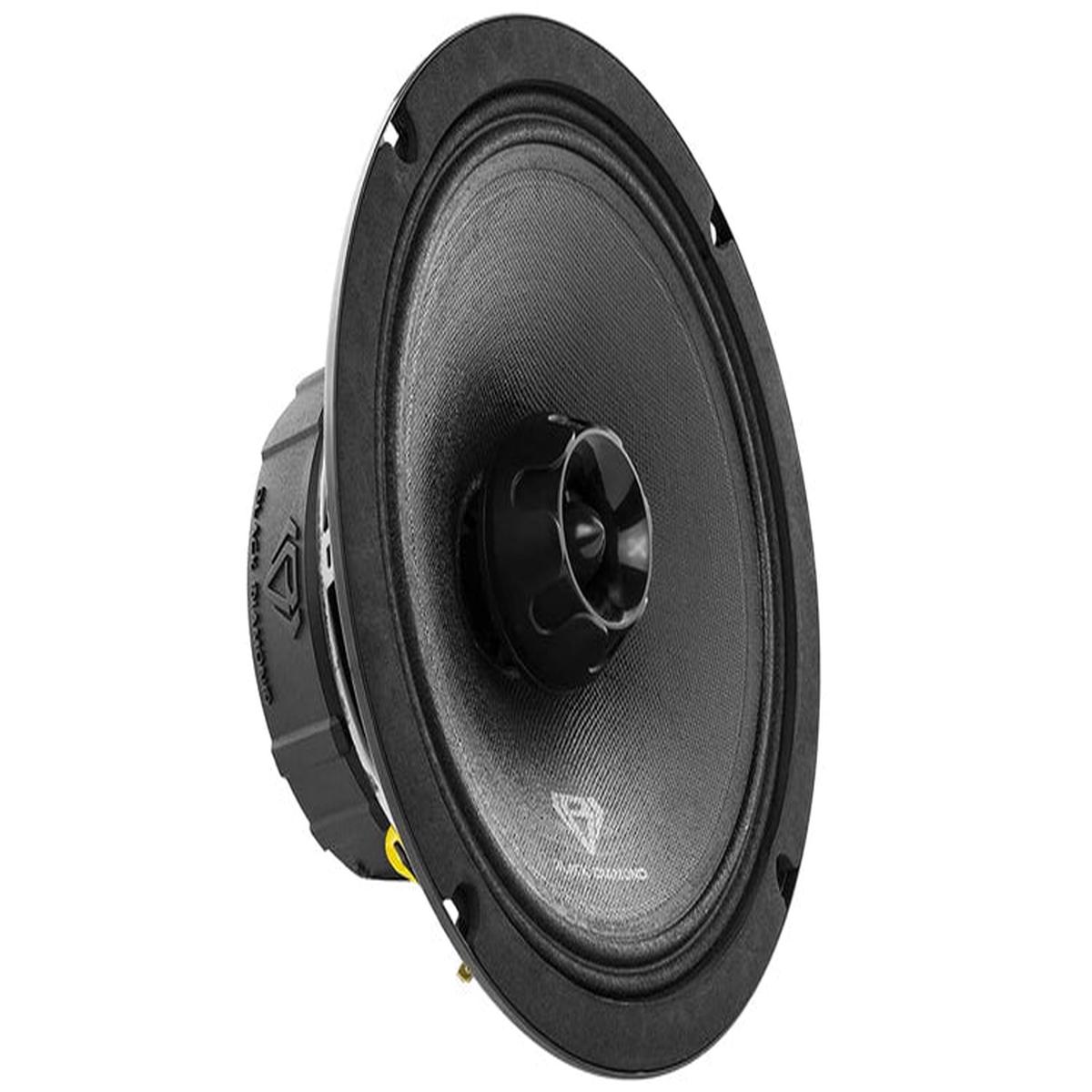

Black Diamond 8″ Mid-range LoudSpeaker With Bullet Tweeter Built In 4-Ohm 550 Watts DIA-XT8

• MAX Power Handling: 550W
• RMS Power Handling: 275W
• Nominal Impedance: 4 OHMS
• Sensitivity: 98dB
• Frequency Response: 85Hz – 22KHz

• Woofer Specifications
  • Voice Coil Diameter: 1.5″/38.6mm
  • Cone Material: Paper
  • Surround Material: Cloth
  • Basket Material: Steel
  • Magnet Material: Ferrite
  • Magnet Weight: 27 oz
• Tweeter Specifications
  • Voice Coil Diameter: 1″
  • Diaphragm Material: Aluminum Alloy
  • Magnet Material: Neodymium (N38H)
  • Magnet Weight: 0.44 oz
• Measurements
  • Overall Diameter: 8.25″/210 mm
  • Overall Depth: 3.85″/98mm
  • Front Mount Baffle Cutout: 7.13″/181 mm
  • Mounting Depth: 3.58″/91mm
  • Motor Diameter: 4.6″/117mm
