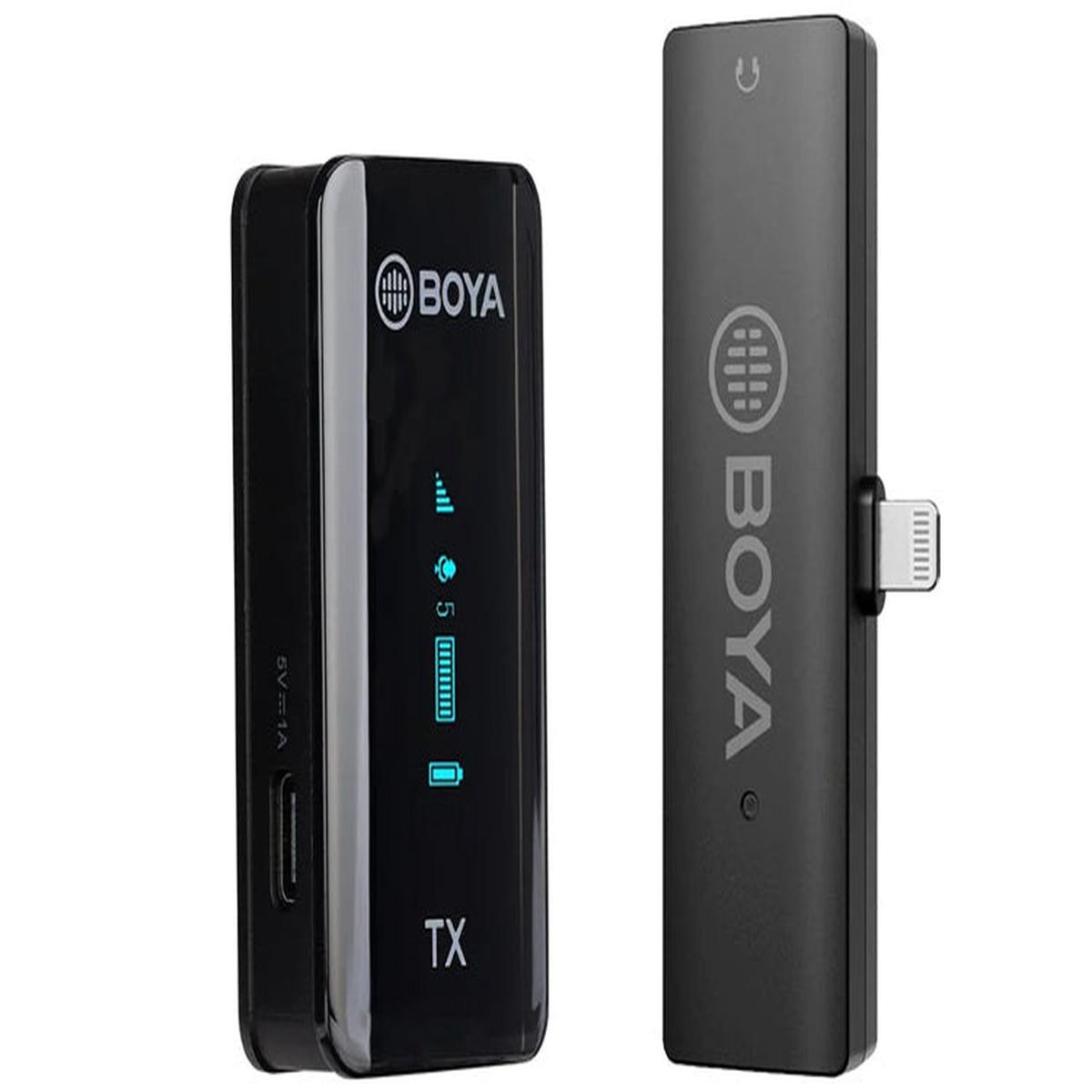

Boya BY-XM6-S3: 2.4GHz Dual-Channel Wireless Microphone System

The BOYA BY-XM6-S3 is an advanced 2.4GHz dual-channel wireless microphone system, comprising one transmitter and one receiver, tailored for Apple iOS devices with lightning ports. It is perfect for vlogging, content creation, live streaming, recording, and more. Leveraging the 2.4GHz technology, the BY-XM6-S3 delivers exceptional high-quality audio with precise tone reproduction. By operating in the 2.4GHz digital frequency band, the system effectively eliminates interference from TV and radio waves, ensuring stable and interference-free signals within a range of up to 100m.

Key Features:

• Dual-channel wireless microphone system delivering high-quality sound
• Advanced 2.4GHz signal transmission technology providing stable signals up to 100m range without obstacles
• Automatic connection without the need for extra apps or cables when powered on and plugged into the device
• Transmitters with up to 7 hours of working time and equipped with an easy-to-read, vivid, and informative OLED display
• Receiver with Mono/Stereo output setting, headphone output, and compatibility with lightning ports of iPhones and iPads
• Includes omnidirectional lavalier mics and complete accessories, making it a cost-effective choice for various applications

Specifications

• Transmitter:
  • Transmission Type: 2.4GHz Digital Frequency
  • Modulation: GFSK
  • Operating Range: Up to 328ft (100m) (without obstacle)
  • RF Output Power: 10mW
  • Polar Pattern: Omnidirectional
  • Frequency Response: 35Hz-18KHz
  • Maximum SPL: Built-in Microphone: 120dB SPL, Lavalier Microphone: 110dB SPL
  • Sensitivity: Built-in Microphone: -39dB, Lavalier Microphone: -39dB
  • SNR: >84dB
  • Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
  • Built-in Battery Life: Approx. 7 hours
  • Antenna: PIFA Antenna
  • Audio Inputs: 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
  • Weight: Approx. 32g (1.13oz)
  • Dimensions: 62.131.616.5mm
  • Operating Temperature: -10C to 50C
  • Storage Temperature: -20C to +55C
• Receiver:
  • Transmission Type: 2.4GHz ISM Frequency
  • Modulation: GFSK
  • Operating Range: Up to 328ft (100m) (without obstacle)
  • RF Output Power: <10mW
  • Audio Output Connector: 3.5mm Headphone Jack / Lightning Connector
  • Power Requirements: Supplied by iOS Devices
  • Antenna: PIFA
  • Weight: 14.5g (0.51oz)
  • Dimensions: 75.623.1512mm

What’s in the Box?

• BY-XM6 TX Transmitter x 1
• BY-XM6 RXD Receiver x 1
• USB-C Charging Cable x 1
• Lavalier Microphone x 1
• Mic Clip for Lavalier Microphone x 1
• Foam Windscreen for Lavalier Microphone x 1
• Fur Windshield for Built-in Microphone x 1
