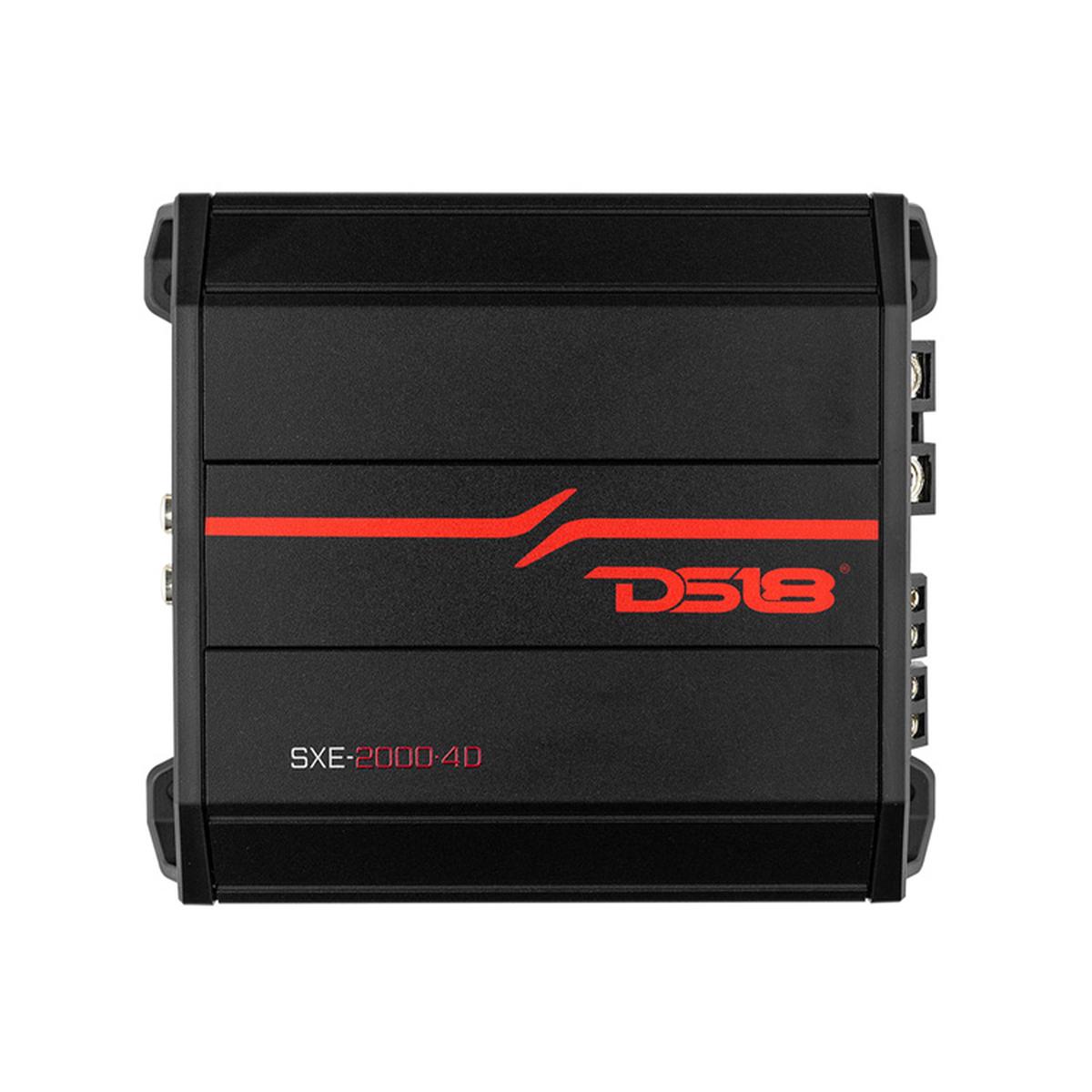

The SXE-2000.4D gives you full control over your system’s sound, allowing you to tailor your audio to your exact preferences. With its selectable crossover and multi-channel design, you can fine-tune every detail bringing out the clarity in every beat, melody, and lyric.
Its compact form factor makes installation simple in virtually any vehicle, making it an ideal fit for custom setups. Experience a personalized soundstage that perfectly reflects your individual listening style.

Key Features:

• Full Range Amplifier
• 4 Channel
• Class D
• 2 ~ 4 Ohm Stable
• 4 X 100 Watts @ 4 Ohm
• Compact Design

Specifications:

• Total Watts (Peak): 2000W
• RMS Power @ 4 Ohm: 4 x 100W
• RMS Power @ 2 Ohm: 4 x 160W
• RMS Power @ 1 Ohm: N/A
• RMS Power @ 4 Ohm Bridge: 2 x 320W

• Audio
• Frequency Response: 10Hz – 20KHz
• Signal to Noise Ratio: 90dB
• Efficiency @ 4 Ohm: 90%
• Damping Factor: 200
• Input Impedance: 20k
• Channel Separation: 60dB
• Total Harmonic Distortion (THD): 0.10%
• Low Level Input Range: 200mV – 5V
• High Level Input: No
• Selectable X-Over: HPF / FULL / LPF
• X-Over Filter Range: 40Hz – 2KHz
• Bass Boost Range: No
• Bass Boost Frequency: No
• Infrasonic Filter: No
• Phase Selector: No

• Features
• Amplifier Class: Digital (D)
• Amplifier Type: Stereo Full Range
• Number of Channels: 4
• Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
• LED Indicator: Power / Protect / Clip
• Power Input Terminal Size: 4Ga
• Fuse Size: 1 x 40A (40A)
• Remote Level Control: No
• Cooling Fan: No
• Voltmeter: No
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes (16.5V)
• Clipping Protection: Yes
• Body Color / Finish: Black Brushed Aluminum

• Measurement
• Overall Length: 6.4″ / 164.3mm
• Overall Width: 5.5″ / 140mm
• Overall Height: 1.8″ / 48mm
• Heatsink Length: 5″ / 127mm

• Extra Features
• Compact Size for Easy Installation: Yes
• Stable/Reliable Two or Four Layer PCB Design: Yes
• Surface Mount Component Technology: Yes
• QC Verified with Audio Precision Instruments: Yes
• Remote Level Control with Clip Indicator: No
