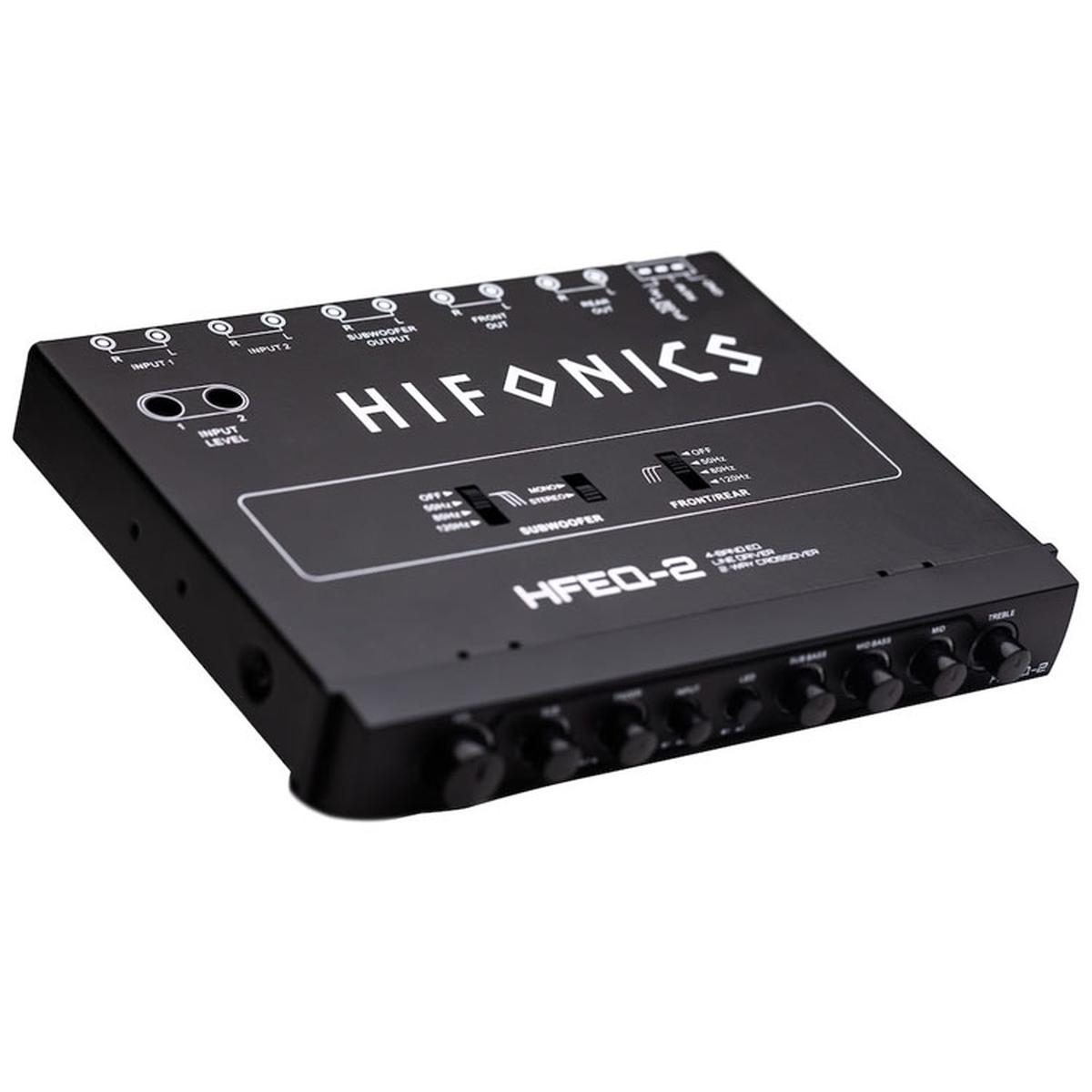

4-Band Equalizer with 9V Line-Driver & Multiple-Source Processor

• Half-DIN
• 4-Band preamp EQ
• Front/rear active crossover features
• Line Driver circuit
• 9-volts of preamp level signal
• Audio input selector
• Input level controls
• Master volume control of the SPL-Level
• Front to rear dual-amp fader
• 2-Audio inputs with level matching
• Selectable 12dB high-pass crossover & low-pass sub output
• Selectable for mono/ stereo subwoofer setups
• 45Hz sub-bass control
• 120Hz mid-bass control

Specifications:

• EQUALIZER BANDS – 4 band
• EQUALIZER FREQUENCIES – 45 – 12000 Hz
• BUILT-IN CROSSOVER – Low-pass (LP), High-pass (HP)
• LINE DRIVER – Yes
• TOTAL NUMBER OF INPUTS – 2
• TOTAL NUMBER OF OUTPUTS – 3
• SIGNAL BOOST/CUT – 12 dB
• MAX OUTPUT LEVEL – 9 volts
• FREQUENCY RESPONSE – 10 – 50000 Hz
• THD (TOTAL HARMONIC DISTORTION) – .01%
• SIGNAL-TO-NOISE RATIO – 100 dB
