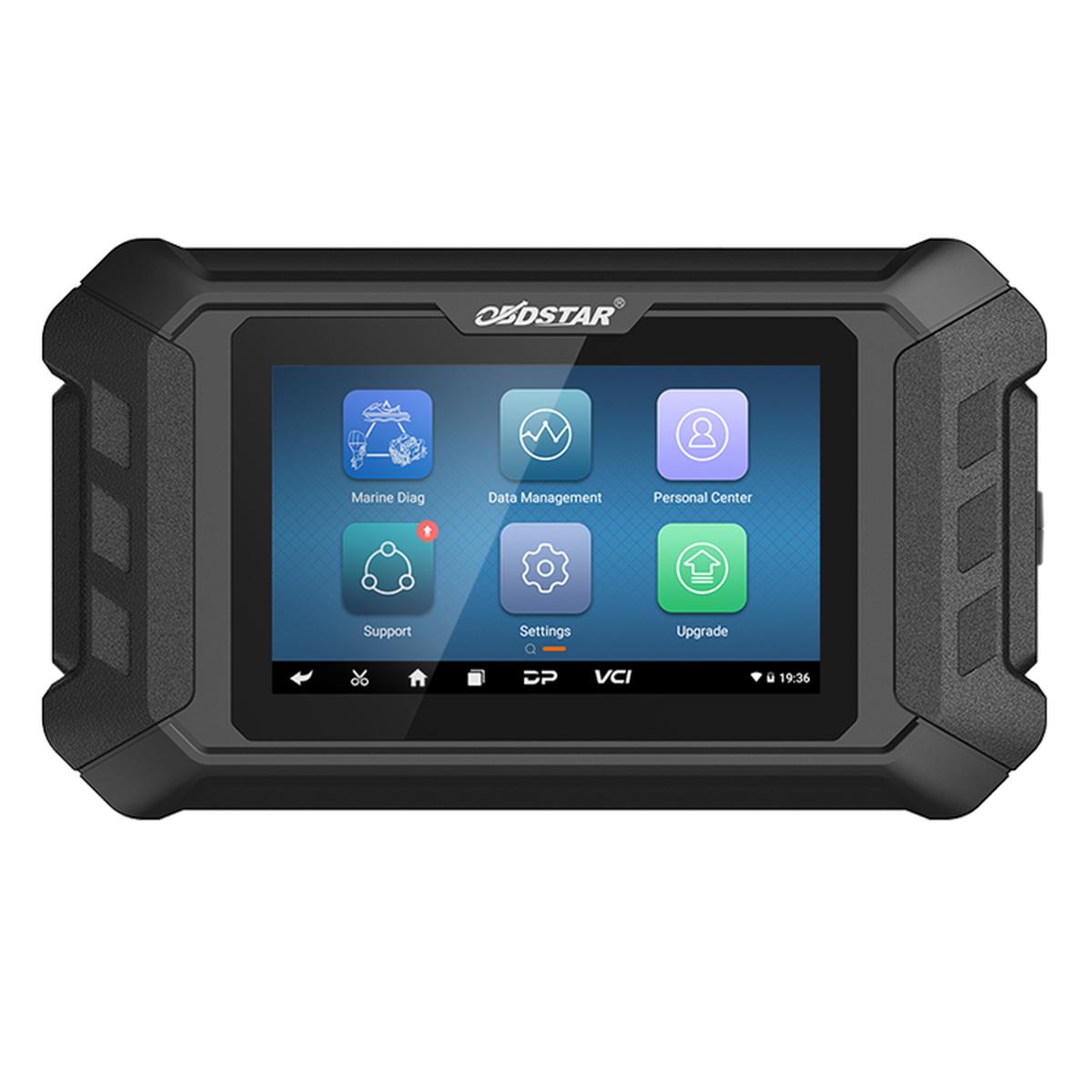

OBDSTAR ISCAN KAWASAKI Marine Scanner

The ISCAN KAWASAKI is a compact and easily transportable scanner tablet that boasts impressive performance capabilities and an industrial appearance specifically designed for KAWASAKI. This innovative device represents the latest in intelligent marine diagnostic equipment and is expertly crafted to meet the unique needs of customers. Powered by a cutting-edge RK3128 quad-core processor and featuring a 5.0-inch capacitive touch screen, the ISCAN KAWASAKI delivers a highly professional and comprehensive diagnostic experience to users.

Key Features:

• The device runs on the latest Android 5.1.1 operating system.
• Its menu interface is designed to be simple and intuitive, allowing users to quickly master its operation.
• It provides a comprehensive range of diagnostic functions, including code reading, code clearing, data flow, action test, setting, and coding.
• Menu selection is convenient and quick, with users able to choose options arbitrarily.
• The device can record and play back real-time data flow, enabling users to quickly and accurately locate sensor and component faults.
• It can connect to Wi-Fi for internet access and one-click software upgrades.
• The device also features a one-click remote function, allowing OBDSTAR technical staff to provide remote assistance to users.

Advanced Function

• The OBDSTAR mobile app offers a range of integrated functions such as diag socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, etc. This app works in conjunction with ISCAN to enable more accurate and efficient marine diagnosis.
• The device offers several different data flow display modes, including text, waveform diagram, and instrument diagram, which help users to easily analyze faults.
• The device supports a range of special functions, including Device Configuration, Maintenance Notification Setting, and others.

Diagnostic support series

• Support STX-12F/STX-15F/Ultra LX/250X/250LX/260X/260LX/300 Series/310 Series and other models

Specifications:

• Operating System: Android 5.1.1
• CPU: RK3128 quad-core ARM cortex A7
• Battery: 2600mA, rechargeable polymer lithium battery
• Extension Memory Card: 32G micro SD (TF) card supported
• LCD: 5.0 inch
• LCD Resolution: 800*480
• Touch Screen: Capacitive touch screen
• Wifi: Supported
• Working Temperature: -20 to 55 (-4 to 131)
• Storage Temperature: -20 to 70 (-4 to 158)
• Weight: About 700g
• Dimensions: 198mmx115mmx31mm
