– V-mount Adapter Plate: Allows quick mounting onto any V-mount compatible rig.

– Multi-Port Power Hub: Built-in D-Tap and USB-C ports power multiple devices simultaneously.

– Modular LCD Screen Protector: Features tool-free height and width adjustment to effectively protect screens from impacts.

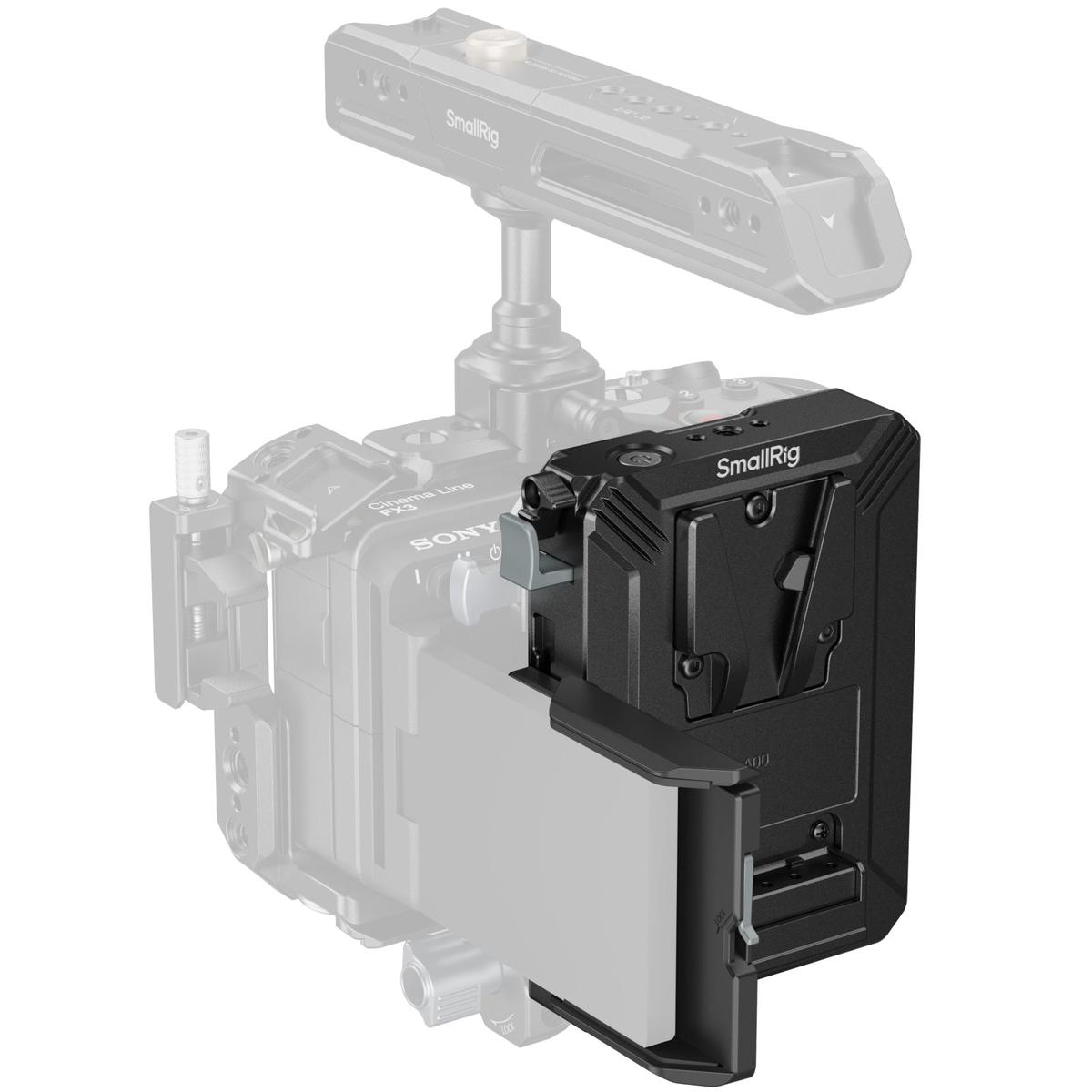

SmallRig V-Mount Battery Mount Plate 5228 is designed for rigs with non-powered V-mount plates, such as models 4505 / 4064B / 4063B, enabling multi-device power distribution and swift battery swaps. The kit includes a V-mount battery plate and an LCD screen protector. The system quickly mounts onto any V-mount compatible rig using a V-mount adapter plate, facilitating V-mount battery attachment for seamless power supply.

Strategically positioned power outputs on the V-mount battery plate, including D-Tap and USB-C, enable simultaneous power supply to multiple devices without interfering with camera or top handle operation. The USB-C port supports up to 65W PD input, allowing it to function as a V-mount battery charger. The modular LCD screen protector features tool-free height and width adjustment, fitting most flip-screen mirrorless cameras while protecting against impacts.

The battery release button features a trigger safety lever with customizable engagement, preventing accidental disengagement for secure operation. Furthermore, the V-mount plate is equipped with multiple 1/4″-20 threaded and locating holes, facilitating the attachment of accessories such as magic arms (ID 3238B / 3873) for wireless transmitters and professional setups.

IMPORTANT
1. When using the LCD screen protector, the battery plate can accommodate V-mount batteries up to 80mm / 3.1 in width. Compatible SmallRig V-mount batteries: 3579B / 4871 / 4872 / 3580B / 4929 / 4930 / 4292 / 4974 / 4608 / 4984 / 3581B / 4293.
2. If the V-mount battery cannot be properly installed, the trigger safety lever may be engaged. To install the battery properly, first disengage the trigger safety lever.
3. After use or when not in use for a long period of time, please remove the V-mount battery or press and hold the power switch button for 3 seconds to cut off the output function.

Key Features
External V-Mount Battery Voltage: 11.0V16.8V
Recommended Battery Rated Capacity: 3500mAh20000mAh / 14.8V (Nominal)
D-Tap (Output Only):
11.2V16.8V / 8A (Max)
(Per D-Tap Port: 8A Max; Three-Port Combined: 18A Max)
USB-C Input / Output:
USB-C1 Output / Input: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A; 65W (Max)
USB-C2 Output / Input: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A; 65W (Max)
PD3.0: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A
QC2.0 / AFC: 5V 3A, 9V 3A, 12V 3A
QC3.0: 512V 3A
DCP 1.5A: 5V 0.51.5A
PPS: 3.320V 5A
APPLE 2.4A: 5V 2.4A
Discharge Cut-off Voltage: 11.2V (Prioritize battery’s own cutoff voltage for protection to avoid over-discharge)
Operating Temperature:
Charging: 0C45C / 32113
Discharging: -15C60C / 5140
Storage Temperature & Humidity:
Stored for one month: -20C60C / -4140
Stored for three month: -20C45C / -4113
Stored for one year: -20C20C / -468
(Humid environment)
Product Dimensions: 112.0 x 95.5 x 79.5mm / 4.4 x 3.8 x 3.1in
Package Dimensions: 162.0 x 122.5 x 69.0mm / 6.4 x 4.8 x 2.7in
Product Weight: 266.0 5.0g / 9.4 0.2oz
Package Weight: 362.2 5.0g / 12.8 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass

Compatibility
V-mount compatible accessories

WHAT IS INCLUDED
1x V-Mount Battery Mount Plate
1x LCD Screen Protector
1x Operating Instruction
1x User Manual
